Description

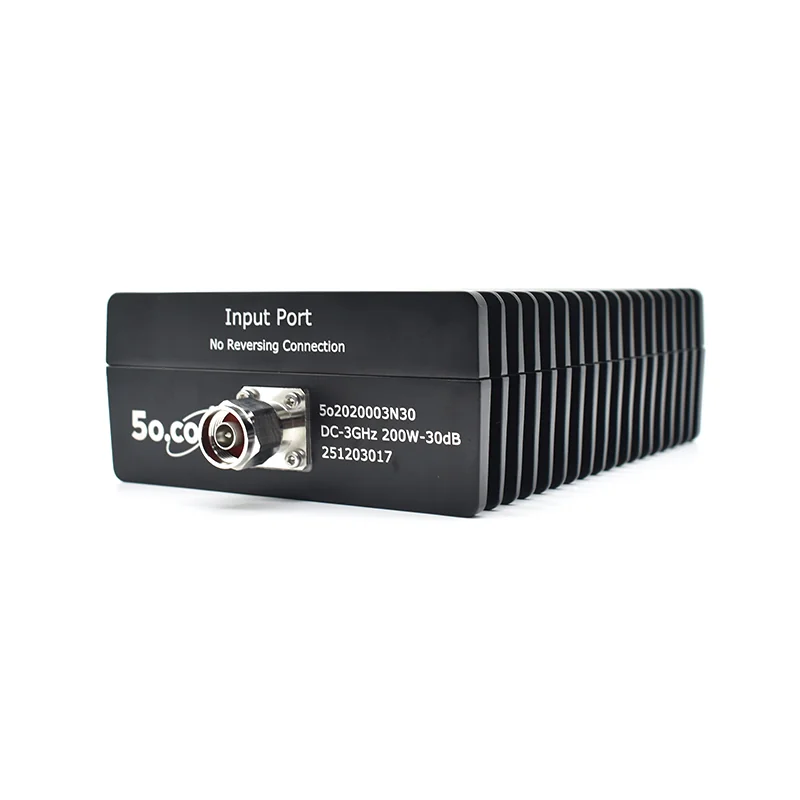

Model Number: 5o2020003N Series
Frequency Range: DC to 6GHz (DC to 3GHz for 5o2020003N6 and below models)
Attenuation Value: 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 40dB
Attenuation Tolerance: plus or minus 0.6dB to plus or minus 2.0dB depending on model
VSWR Max: 1.20 to 1.35 depending on model
Rated Power: 200W
Connector Type: N-J-K
Operating and Storage Temperature: minus 55 degrees C to plus 125 degrees C
Dimensions: approximately 245.0 mm x 200.0 mm x 145.0 mm varies by model
Impedance: 50 ohm
